Sprängskisser

Original- och bruksrenoveringar samt Custombyggen.

Sprängskisser

Inläggav Herbie » 14 nov 2018, 00:54

Håller på med en F50 -76 och efterlyser sprängskisser på ramen/chassie.
Har sökt men hittar bara uppgifter och skisser på Sachsmotorerna :(
Skulle också vilja veta vad den hade för drevning orginal :)
Herbie

Inlägg: 21
Blev medlem: 27 aug 2018, 20:24

Re: Sprängskisser

Inläggav TolvNollNio » 14 nov 2018, 14:49

Drevningen är samma för SM50, E-type och alla modeller av F50 dvs 12/42
Blå/vit Monark 1209
TolvNollNio

Inlägg: 661
Blev medlem: 26 jan 2015, 20:46
Ort: Nordvästskåne

Re: Sprängskisser

Inläggav Herbie » 15 nov 2018, 23:56

Senast redigerad av Herbie 04 maj 2019, 21:51, redigerad totalt 1 gång.
Herbie

Inlägg: 21
Blev medlem: 27 aug 2018, 20:24

Re: Sprängskisser

Inläggav Raketsport » 19 nov 2018, 11:02

Egentligen finns det inga skisser som visar hur delarna sitter ihop förut nav och framgaffel. Resten av katalogbilderna visar bara hur varje del ser ut och vilket res.numer de har.
Klicka på bilderna för att se dem i större format.

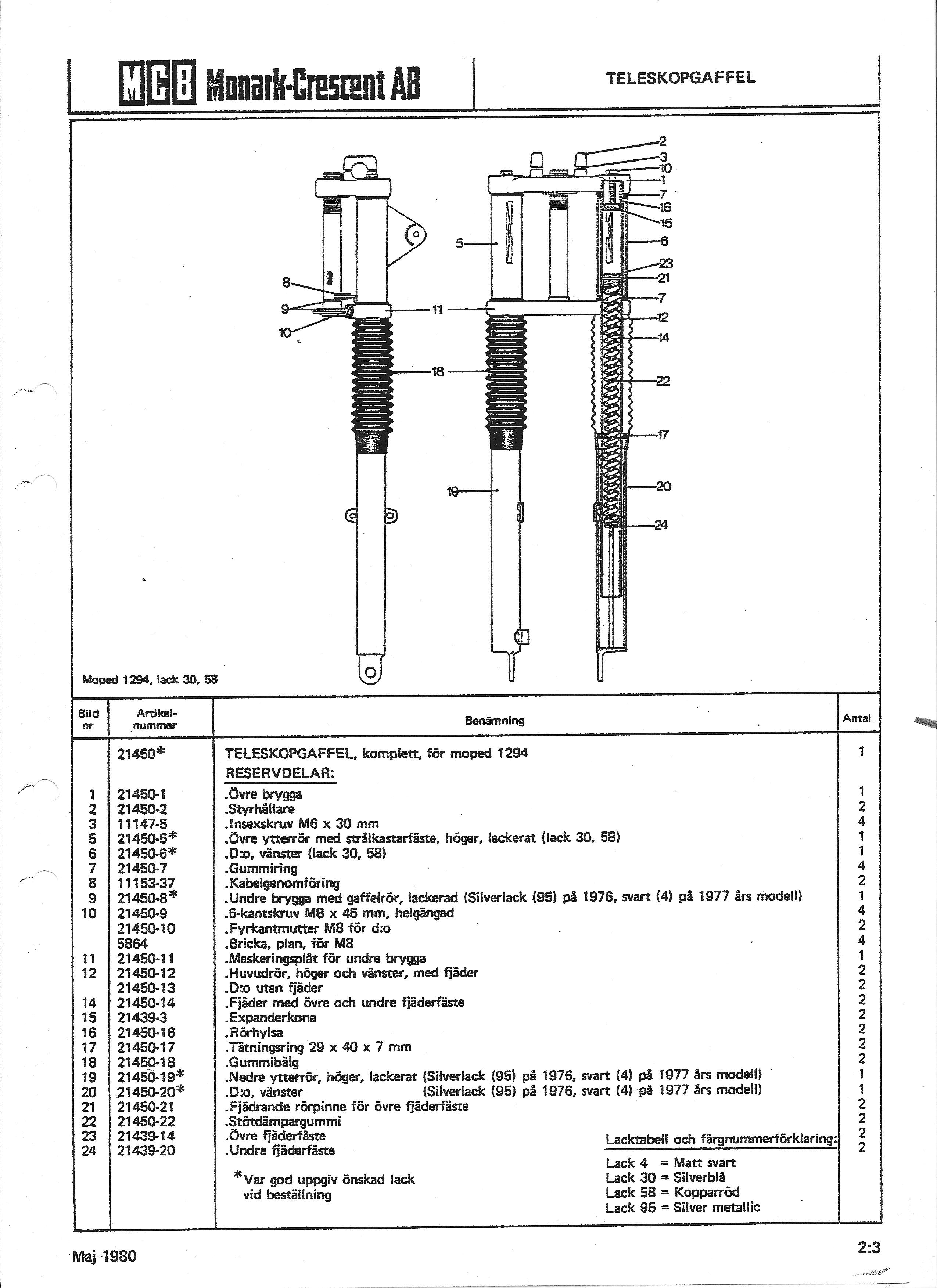

framgaffel 1294.jpg
framhjul 1294.jpg
//Jossan
Användarvisningsbild
Raketsport
Site Admin

Inlägg: 14610
Blev medlem: 26 nov 2007, 00:00
Ort: Västra Pengfors, Vännäs

Re: Sprängskisser

Inläggav Raketsport » 19 nov 2018, 11:09

MCB 1294 0001.jpg
//Jossan
Användarvisningsbild
Raketsport
Site Admin

Inlägg: 14610
Blev medlem: 26 nov 2007, 00:00
Ort: Västra Pengfors, Vännäs
